An RR PMSM (Radial Rotor Permanent Magnet Synchronous Motor) HVLS (High Volume Low Speed) fan is a cutting-edge concept designed for efficient, large-scale air circulation.
Applications

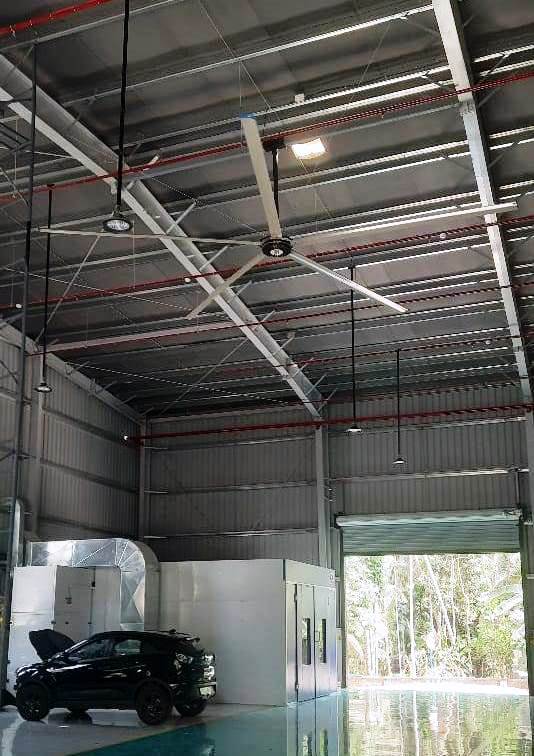

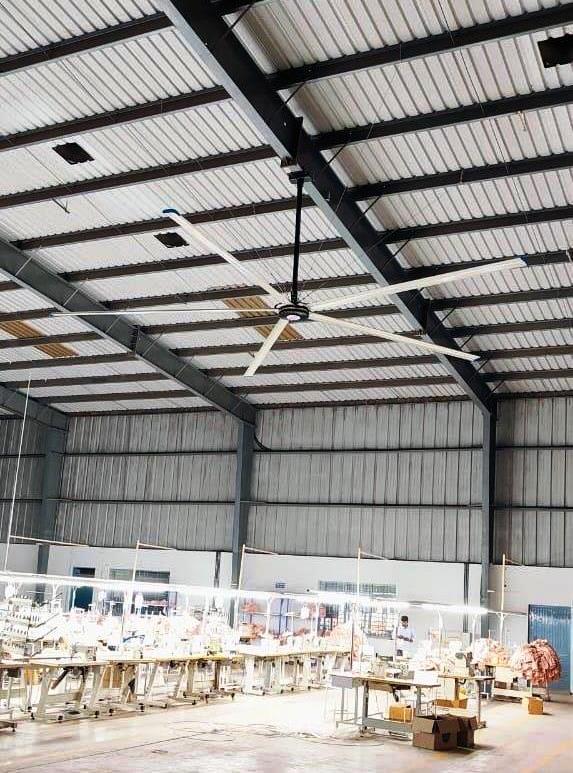

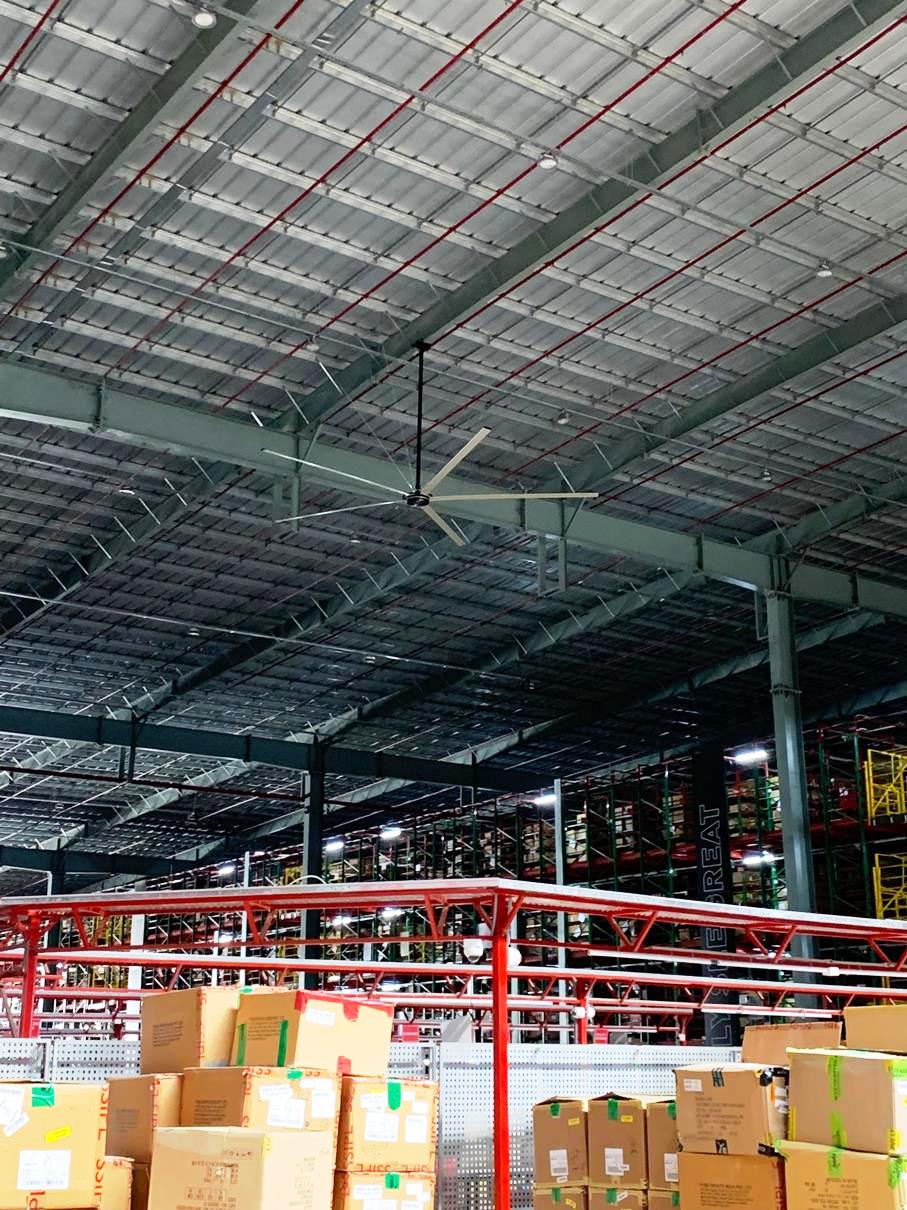

- Industrial Settings: Warehouses, factories, and distribution centers benefit from improved air circulation and energy efficiency.

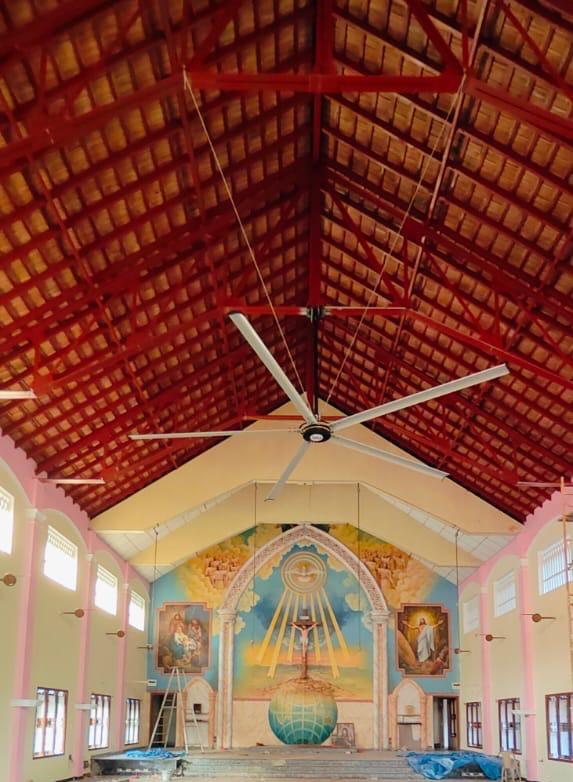

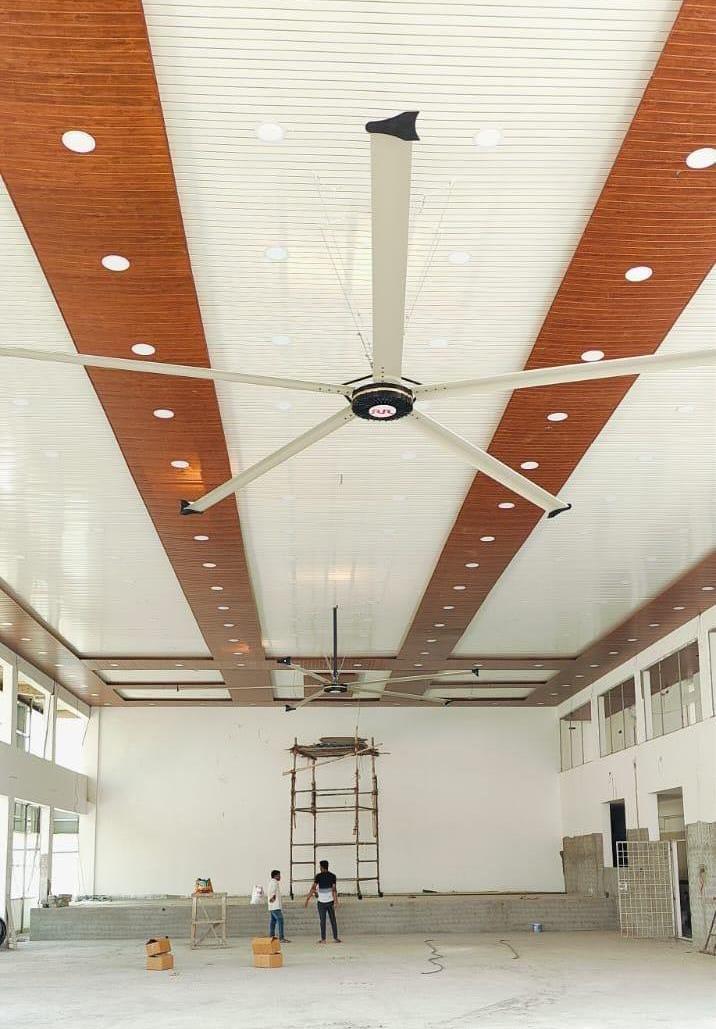

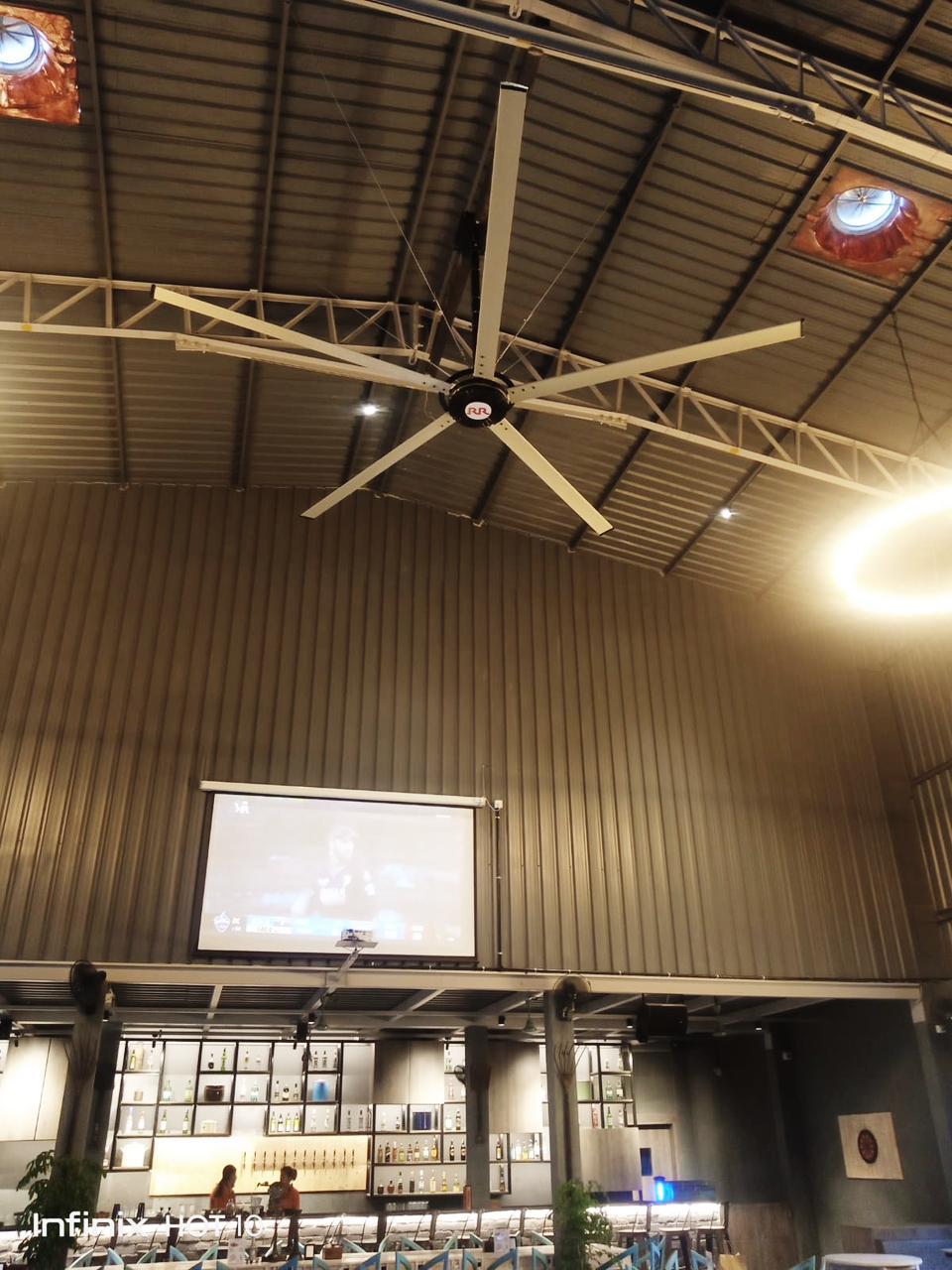

- Commercial Spaces: Large retail stores, gymnasiums, and agricultural facilities also utilize HVLS fans for climate control.
- Environmental Impact: The high efficiency of PMSM motors reduces electricity consumption, making them a more sustainable option for large-scale ventilation.
| HVLS FAN | WALL FAN | |
|---|---|---|
| Fan Diameter (m) | 7.3 | 0.75 |
| Power (KW) | 1.5 | 0.36 |
| Air Flow (m/min) | 13000 | 300 |
| Effective Area | 1500 | 30 |
| Factory Area | 9000 | 9000 |
| Total Units Installed | 6 | 300 |
| Total KW Installed | 9 | 100 |
| Consumption Year @10 Hrs/ Day @26 Days / Mth | 28080 | 336960 |
| Model | PH-V05H-8 | PH-V05R-10 | PH-V05H-12 | PH-V06R-16 | PH-V06R-20 | PH-V06R-24 |
|---|---|---|---|---|---|---|
| Diametre | 8 | 10 | 12 | 16 | 20 | 24 |
| Input Power | Single Phase 230 Volt, 50 Hz | Blade Material | Aviation Grade Extruded Aluminium Alloy 6063 - T3 | |||
| No.of Blade | 5 | |||||
| Nominal Fan Weight (Kg) | 45Kgs | 46Kgs | 54Kgs | 84Kgs | 98Kgs | 106Kgs |
| Power (W) | 150W | 275W | 400W | 600W | 900W | 1300W |
| RPM (Rated) | 50-110 | 100 | 50-95 | 80 | 55-65 | 50 |
| Area Coverage (Sq. Ft) | 4000 | 5500 | 7000 | 10000 | 13500 | 18500 |
| Floor to fan Blade height (Ft) | 12-15 ft | 14-17 ft | 10-12 ft | 18-22 ft | 22-27 ft | 27-30 ft |
| Sound Level | 45--50 dB | |||||
| Blade Clearance From Ceiling | 2-3 Ft | 4 Ft | 3 Ft | 4 Ft | 4-5 Ft | 4-5 Ft |
| Max Air Flow (CFM) | 136000 | 150000 | 175000 | 220000 | 280000 | 380000 |
